AXQJ TT 12 kV 3-core

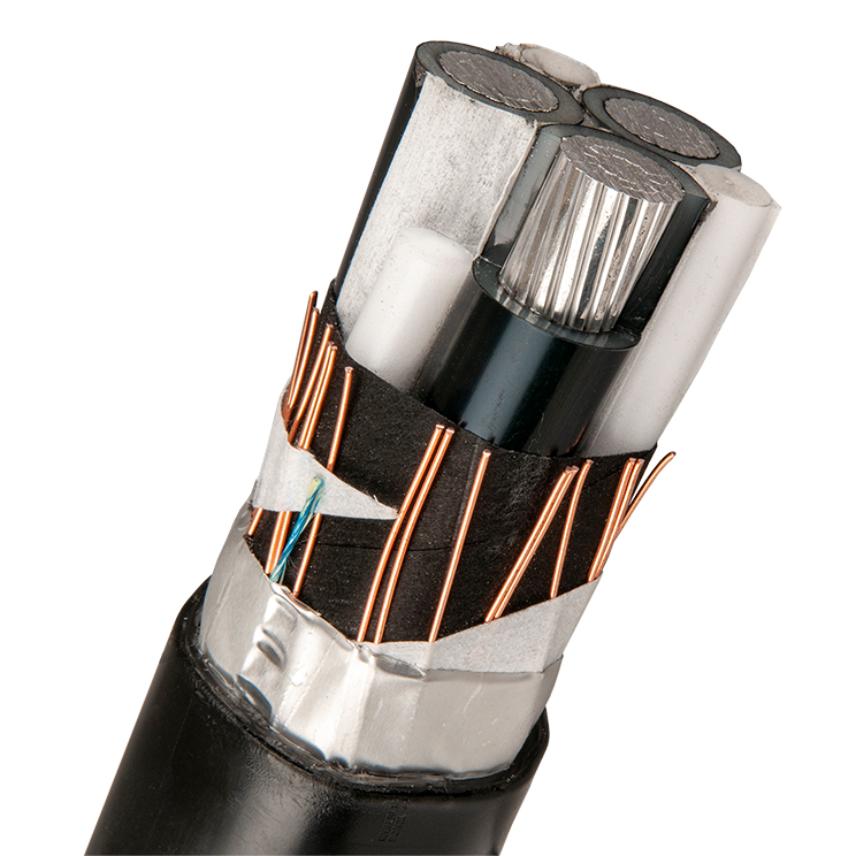

AXQJ TT is a longitudinally and radial watertight, halogen free, XLPE-insulated, Cu screened. The concentric screen and the aluminium foil has longitudinal contact. HFFR sheathed 3-core cable with circular aluminium conductors. The cable is designed according to HD 620 S2 10M. The conductors are longitudinally water blocked have resistance and number of wires according to IEC 60228 class 2. The sheath is marked type/manufacturer/year+month/metre marking. AXQJ TT meets the requirements for class D_cas₂d₂a₂ according to CPR.

Lifemark(TM) recycling marking

The extarnal surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.

Standards

AXQJ is in applicable parts manufactured and tested according to HD 620 S2 2010 10M. The cable can be loaded according to SS 424 14 16.

Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
