AXQJ Easy 1 kV 4X50/16

Beskrivelse

Beskrivelse

Standarder

  • International
    HD 603.5AB

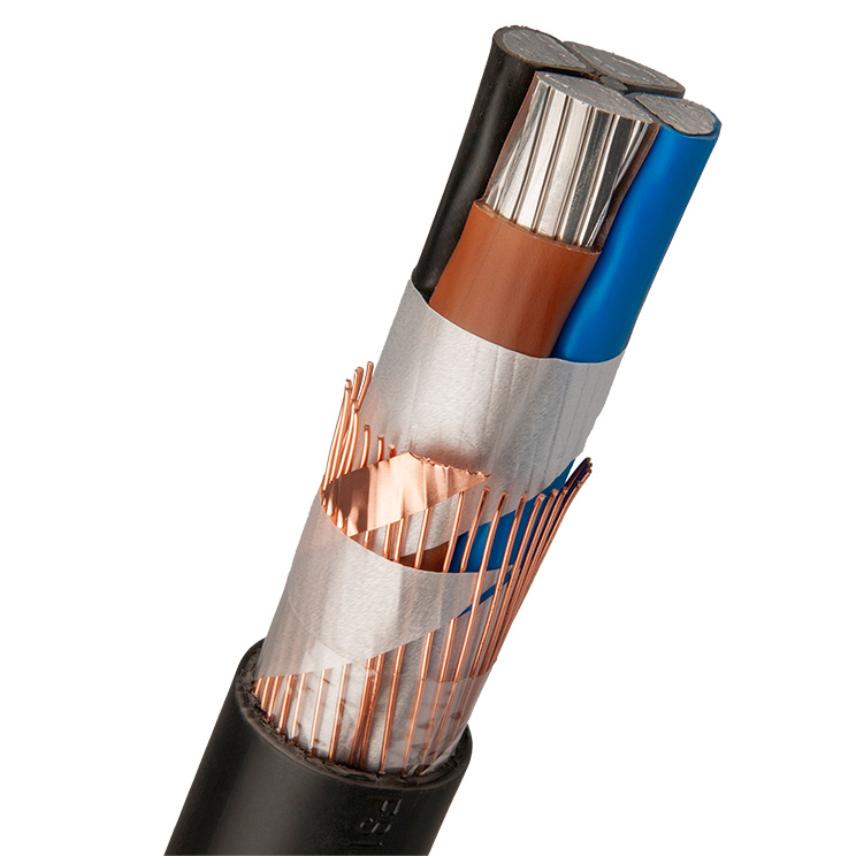

AXQJ/IFSI/AMCMK HF Easy™ is a halogen free, XLPE-insulated, HFFR-sheathed cable with sector shaped, stranded aluminium conductors. The cable has a screen of annealed copper wires with opposite open helix of copper. AXQJ/IFSI/AMCMK HF Easy™ is designed according to HD 603 5AB. The conductors have resistance and number of wires according to IEC 60228 class 2. The cable is easy to bend and handle. The cores are identified by colours according to HD 308. The sheath is marked type/manufacturer/year+month/metre marking. AXQJ Easy™ meets the requirements for fire classification accordingto CPR Dcas2d2a2. The cable is certified by Intertek SEMKO.



Standards

AXQJ/IFSI/AMCMK HF Easy™ is manufactured and tested according to HD 603 3-L.The cable can be loaded in accordance with national regulations on electrical installations.



Certification

Approved by Intertek SEMKO.



Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.



Lifemark(TM) recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.



EcoCalculator

Choose the best cable solution to achieve Energy Efficiency, reduced Carbon Footprint and improved Safety of people in case of fire, whilst ensuring a good return on Investment.






Installation film AXQJ Easy™ 1 kV

Egenskaber

Egenskaber

Konstruktion

Konstruktion

Lederens materiale
Aluminium
Isolation
XLPE
Lederform
Sektorformed
Ydre kappe
HFFR (polyolefin)
Farve
Sort
Halogenfri
Ja
Leder fleksibilitet
Class 2
Med gul/grøn leder
Nej
With smaller neutral conductor
Nej

Dimensioner

Dimensioner

Antal af ledere
4
Leder tværsnit
50 mm²
Leder isoleringstykkelse
1,0 mm
Skærm tværsnit
16 mm²
Kappetykkelse
2,0 mm
Nominel ydre diameter
29,3 mm
Ca. vægt
108,0 kg/100m
Neutral conductor section (when smaller)
- mm²

Elektriske egenskaber

Elektriske egenskaber

Max. DC-modstand af leder ved 20°C
0,641 Ohm/km
Modstand af skærm
1,2 Ohm/km
Mærkespænding Uo/U
0.6 / 1 kV
Nom. induktans
0,21 mH/km

Håndteringsinformation

Håndteringsinformation

Minimum installations temperatur
-10 °C
Anbefalet minimum installations temperatur
0 °C
Maksimal drifttemperatur
90 °C
Maksimum kortslutningstemperatur – leder
250 °C
Længde
500 m
Emballering
K12
Bending factor when laying
12 (xD)
Bøjningsradius ved installation
8 (xD)
Installations type
-
Minimum drifttemperatur
-40 °C
Røg tæthed
IEC 61034
U.V bestandig
Very good

Ressourcer

Ressourcer

Salgs- & leveringsoplysninger

AXQJ/IFSI/AMCMK HF Easy™ will be delivered in lengths of 500 m The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.

Ydelsesdeklaration

  • Ydelsesdeklaration nr. : 1000706-SEGR
  • Certificeringsdato : 18.02.2022
  • AVCP (evaluering og fortløbende kontrol af resultater) : System 3
  • Notificeret organ : 0366
  • Ydelse : Dca-s2,d2,a2
