FQLQ Easy™ control 450/750 V

Produkter

FQLQ 450/750 V 5G6 + 2x0,75

Varenr. 14091898

  • Emballering: Tromle (500m)



Beskrivelse

Beskrivelse

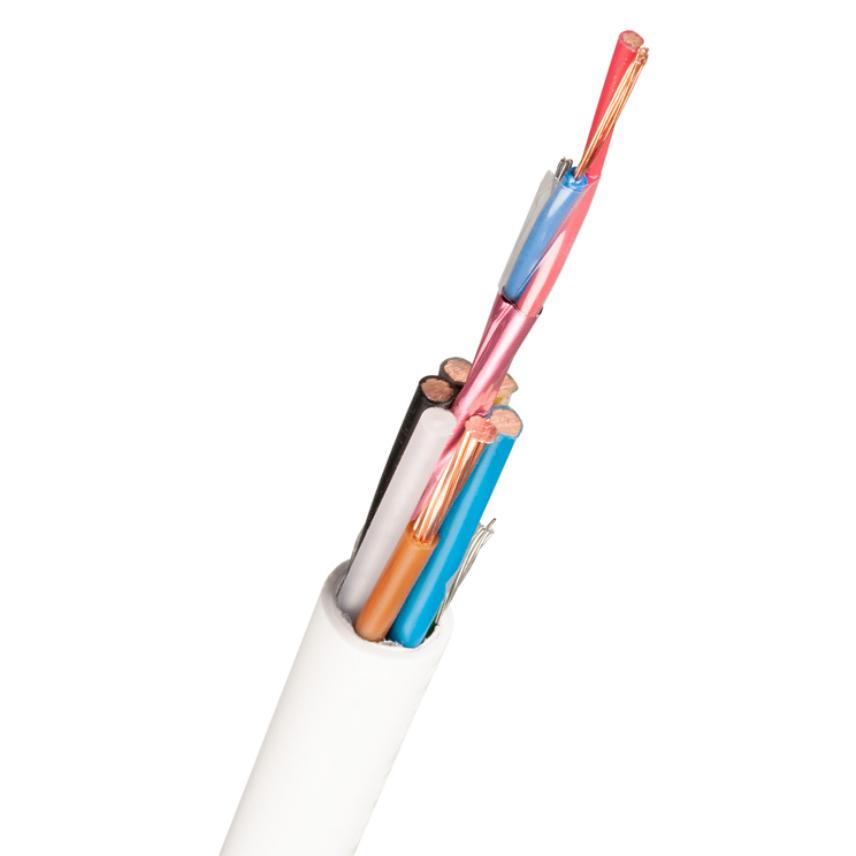

FQLQ Easy™ control is a halogen free, HFFR-insulated, aluminium taped, HFFR-sheathed house wiring cable with circular, stranded copper conductors. In the middle of the cable is a pair of screened control cores. The cable has a stranded drain wire of tinned copper under and in contact with the aluminium tape. FQLQ is designed according to SS 424 02 19-6 in applicable parts. The conductors have resistance and number of wires according to IEC 60228 class 2. The cores are identified by colours according to HD 308. The control cores are red and blue.  The sheath is marked. type/manufacturer/year+month/metre marking. FQLQ Easy™ control meets the requirements for fire classification according to CPR Dcas2d2a2. The cable emits no corrosive gases and has low smoke production during fire. The conductor insulation shall be protected against UV light that can occur for example in light fixtures and light signs.


Lifemark(TM) recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.


Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Egenskaber

Egenskaber

Konstruktion

Konstruktion

Lederens materiale
Kobber
Lederform
Cirkulær
Leder fleksibilitet
Stranded clase 2
Ydre kappe
HFFR (polyolefin)
Farve
Hvid
Halogenfri
Ja

Dimensioner

Dimensioner

Antal af ledere
5
Leder tværsnit
6 mm²
Nominel ydre diameter
17,6 mm
Ca. vægt
51,0 kg/100m
Number of control cores
2

Elektriske egenskaber

Elektriske egenskaber

Mærkespænding Uo/U
450 / 750 V

Håndteringsinformation

Håndteringsinformation

Minimum installations temperatur
-10 °C
Anbefalet minimum installations temperatur
0 °C
Maksimal drifttemperatur
70 °C
Maksimum kortslutningstemperatur – leder
150 °C
Electro-magnetisk interferens modstand
Ja
Korrosive røggasser
IEC 60754-2
Røg tæthed
IEC 61034

Ressourcer

Ressourcer

Salgs- & leveringsoplysninger

FQLQ will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length.
